TISCHROL 450

Manual winder for rings and spools with outer Ø max. 450 mm. Convinces with a flexible modular system and effortless ease of use

Practical table winder

Functionality

This manual ring and coil winder can be used to wind materials such as cables, wires, etc. onto small rings or spools.

  • User-friendly hand winder

  • Translation between crank speed and winding speed 1:1 or 1:3

  • Ring winding head depending on ring size

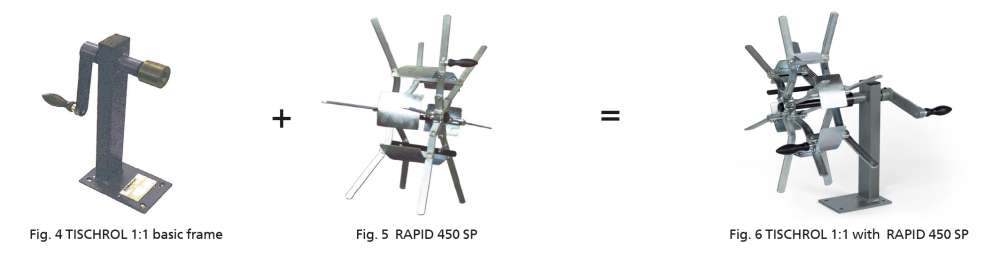

Modular system

Technical specifications

TISCHROL 450 complete device 85100012

TISCHROL complete device with TISCHROL 1:3 and spool winding axle.
Consisting of: Pillar, base plate, hand crank, spool winding axle

Length
300 mm
Width
445 mm
Height
410 mm
Colour
mouse grey / light grey
Transmission ratio
1:3
Spool plate Ø
300 mm
Spool width at bore 80 mm
165 mm
Spool width at bore 25 mm
135 mm
Axle
Ø 16 x 200 mm
Axle holer Ø
20 mm
Loading capacity
max. 10 kg

Item No.

Base frame TISCHROL 1:3
85100434
Spool winding axle
85100100

TISCHROL 1:1 Base frame 85100433

Consisting of: Pillar, base plate and hand crank

Length
100 mm
Width
270 mm
Height
325 mm
Colour
RAL 7005 mouse grey
Weight
ca. 2,6 kg
Transmission ratio
1:1
Axle holder Ø
20 mm
Dimension base plate to centre line
250 mm
Coiler head
max. 450 mm

TISCHROL 1:3 Base frame 85100434

Consisting of: Pillar, base plate and hand crank

Length
100 mm
Width
270 mm
Height
295 mm
Colour
RAL 7005 mouse grey
Weight
ca. 3,8 kg
Transmission ratio
1:3
Axle holder Ø
20 mm
Dimension base plate to centre line
250 mm
Coiler head
max. 450 mm
